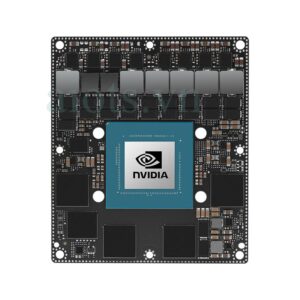

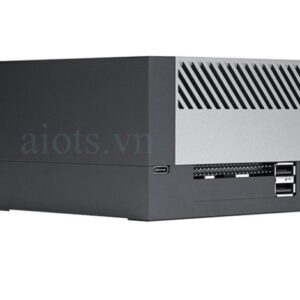

Jetson AGX Orin 64GB Developer Kit

 Thông số kỹ thuật:

• GPU/ CPU: * Ampere GPU + Arm Cortex-A78AE CPU + 64GB LPDDR5 + 64GB eMMC 5.1
• AI Performance: JAO 64GB: Up to 275 Sparse TOPS (INT8)
• Ampere GPU: JAO 64GB: two graphics processing cluster (GPC) | eight texture
• processing clusters (TPC) | 2048 NVIDIA® CUDA® cores | 64 Tensor
• cores Ray-Tracing cores | 170 Sparse TOPS | Maximum Operating
• Tần số: 1.3 GHz
• Arm Cortex-A78AE CPU:JAO 64GB: 12x cores | three CPU clusters (four cores/cluster) | 259 SPECint_rate2006
• Trình tăng tốc DL: JAO 64GB: Maximum Operating Frequency: 1.6 GHz | 52.5 TOPS each (Sparse INT8)
• Bộ nhớ: JAO 64GB: 64GB 256-bit LPDDR5 DRAM
• Giao diện ngoại vi: *USB: xHCI host controller with integrated PHY (up to) 3x USB 3.2 Gen2
• (10Gbps), 4x USB2.0 | PCIe Gen4: 2 x8, 1 x4, 2 x1 | SD/MMC controller
• (supporting eMMC 5.1, SD 4.0, SDHOST 4.0 and SDIO 3.0) | 4x UART | 3x
• SPI | 8x I2C | 2x CAN | 4x I2S | 2x DMIC | 1x DSPK | GPIOs
• Kích thước mô-đun: 100.0 mm x 87.0 mm x 16.0 mm | 699 pin B2B Connector |
• Tấm truyền nhiệt tích hợp (TTP) với Heatpipe

Datasheet: https://www.mouser.vn/new/seeed-studio/seeed-nvidia-jetson-agx-orin-dev-kit/
