Highspeed AD/DA Card(Daughter Cards)

Mua ngay Gọi điện xác nhận và giao hàng tận nơi
Danh mục: , Từ khóa: ,

Specification

  • Dual AD channels with 14-bit resolution and data rate up to 65 MSPS
  • Dual DA channels with 14-bit resolution and data rate up to 125 MSPS
  • Compatible with GPIO and HSMC interface
  • Clock sources include oscillator 100MHz, SMA for AD and DA each, and PLL from either HSMC or GPIO interface
  • Size：90.3*78.2 mm

Applications

  • Low cost oscilloscope and pattern generator
  • Communication Transceiver
  • Digital Signal Processing
  • Platform for various modulation techniques

Connectivity

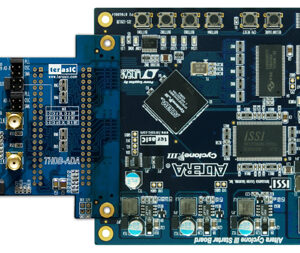

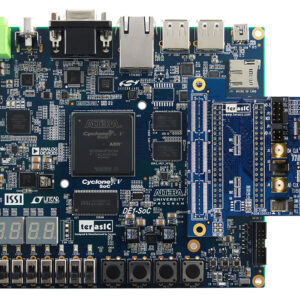

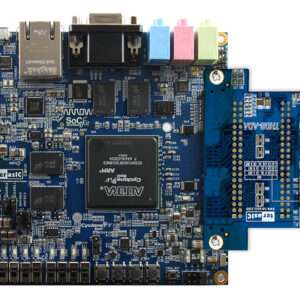

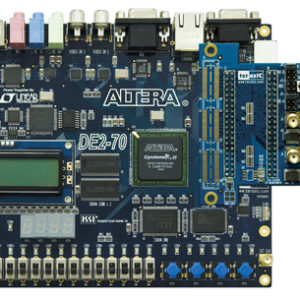

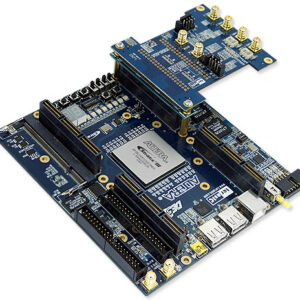

There are two models available, ADA-GPIO and ADA-HSMC, which offer the compatibility of connection to DE1-SoC/DE2/DE1/DE0/DE2-70 and SoCKit/TR4/DE4/DE3/DE2-115/DE2i-150/Cyclone V Starter Kit/Cyclone III Starter Kit

Datasheet: https://www.terasic.com.tw/cgi-bin/page/archive_download.pl?Language=English&No=278&FID=7d33a4a8e787c8097d947da7050859ed
