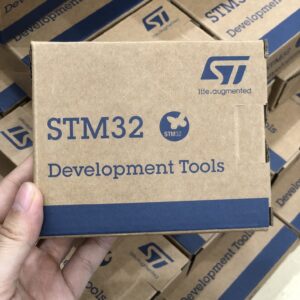

STM32F407G-DISC1

549.000₫

Mua ngay Gọi điện xác nhận và giao hàng tận nơi
Danh mục: , Từ khóa: , ,

Thông số kĩ thuật:

  • STM32F407VGT6 microcontroller featuring 32-bit Arm® Cortex®-M4 with FPU core, 1-Mbyte Flash memory and 192-Kbyte RAM in an LQFP100 package
  • USB OTG FS
  • ST MEMS 3-axis accelerometer
  • ST-MEMS audio sensor omni-directional digital microphone
  • Audio DAC with integrated class D speaker driver
  • User and reset push-buttons
  • Eight LEDs:
    • LD1 (red/green) for USB communication
    • LD2 (red) for 3.3 V power on
    • Four user LEDs, LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue)
    • Two USB OTG LEDs, LD7 (green) VBUS and LD8 (red) over-current
  • Board connectors:
    • USB with Micro-AB
    • Stereo headphone output jack
    • 2.54 mm pitch extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing
  • Flexible power-supply options: ST-LINK, USB VBUS, or external sources
  • External application power supply: 3 V and 5 V
  • Comprehensive free software including a variety of examples, part of STM32CubeF4 MCU Package, or STSW-STM32068 for using legacy standard libraries
  • On-board ST-LINK/V2-A debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
  • Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE

Datasheet: https://www.st.com/resource/en/data_brief/stm32f4discovery.pdf

Brand

STMicroelectronics

STMicroelectronics
